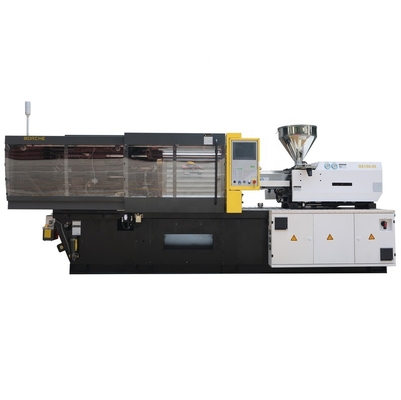

Horizontal 150Tons Borche BS150-III Injection Molding Machine With Good Plastic Plug Factory Price

1 Set
MOQ
Horizontal 150Tons Borche BS150-III Injection Molding Machine With Good Plastic Plug Factory Price
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Plastic Processed: PP, ABS, PPR, HDPE, EPS, PA, PE, HDPE/PP, ABS/PP, PE/PP
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 460mm
Distance between Tie Bars(Height)(mm): 460mm
Mold Height(mm): 160 - 500 mm
Ejector Stroke(mm): 130 mm
Ejector Force(kN): 41.6 kN
Theoretical Shot Volume(cm³): 270 cm³
Injection Rate (g/s): 140 g/s
Machine Type: Hydraulic
Injection Weight (g): 397 g
Screw diameter (mm): 45 mm
Distance between Tie Bars: 460*460
Weight (KG): 4300 kg
Type: Preform Injection
Place of Origin: Zhejiang, China
Open Stroke(mm): 410 mm
Model Number: BS150-III
Nom de marque: Borche
Power (kW): 9.6 kW
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Mexico, Bangladesh
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
injection molding machine key words: BS150-III Borche
Informations de base
Place of Origin: Zhejiang, China
Nom de marque: Borche
Model Number: BS150-III
Conditions de paiement et expédition
Packaging Details: container
Supply Ability: 50 Set/Sets per Month
Description de produit

150Tons Borche BS150-III injection molding machine with good factory price for plastic socket

150Tons cookware bakelite handles molding injection machine Borche BS150-III

Auxiliary Fascia Console Mould Plastic Auto Parts Making Injection Molding Machine BS150-III

Plastic Auto Parts Injection Molding Machine BS150-III Borche Car Plastic Parts Making Machine

plastik mashina BS150-III Small Plastic Products Making Injection Molding Machine

BS150-III 150Ton Borche Plastic Auto Parts Making Machine

150Ton Servo Motor Injection Molding Machine China Famous Brand China Top 10 Injection Machine Factory Manufacturer

Small Plastic Parts Making Injection Molding Machine

Wiki Wang

Wechat: pewash

Whatsapp/Mobile Number: +8613738082939

BS-Ill Servo Series are featured with adequate power system, high-precision control, stable performance, high versatility and three sizes of screw barrel, which satisfies different pro­duction requirement.

Advanced Technique

Advanced technique realises high efficiency and energy saving demands
BS-Ill Servo Series adopt multi-pump control system, which cooperating with CAN BUS and running flexibly with real-time production demands, can produce small size plastic parts with a single pump and produce big size plastic parts with multi-pump. Lower energy consumption as well as higher-efficient productivity provides a competent and economical solution to satisfy customer requirements.
BS-Ill Servo Series are accredited as National First Grade Energy Saving and the best applica­tion only reach 60% of first grade consumption level. Compared with traditional hydraulic system, BS-Ill Servo Series can save 20%-80% energy. Servo motor proportionally delivers hydraulic oil based on actual needs, avoiding extra heating and temperature rise, ensures water saving.

Key Points
Machine is designed in accordance with ergonomics to enable human-oriented operation.
Integral optimism improves rigidness of machine structure.
Open space below clamping unit enables three direction product removal by belt conveyer..
Transparent front cover makes movement monitoring available.
Humanized design of more than 20 nameplates reminds operator keep safety in mind always.
Double-carriage cylinder is adopted to ensure stable injection.

High Versatility

BS-Ill Servo Series are featured with adequate power system, high-precision control. stable performance, high versatility and 3 sizes of screw barrel. which satisfies different production requirement.

Energy Efficiency

BS-Ill Servo Series are featured with adequate power system, high-precision control. stable performance, high versatility and 3 sizes of screw barrel. which satisfies different production requirement.

BS150-III 150Ton Servo Motor Injection Molding Machine Video: https://youtu.be/2h8MIpiuC2I

BS150-III 150Ton Borche Plastic Auto Parts Making Machine Main Technical Parameters

DESCRIPTION OF BS150-III 634/150

International Class NO. UNIT

634/150

INJECTION UNIT

Screw Diameter

mm

40

Shot Volume

cm³

270

Shot Weight(PS)

g

254

Shot Weight(PS)

OZ

9

Injection Pressure

MPa

235

Screw L/D Ratio

L/d

23

Injection Stroke

mm

215

Screw Rotary Speed max

rpm

240

Nozzle Contact Force

KN

30

Nozzle Stroke

mm

250

CLAMPING UNIT

Clamping Force

KN

1500

Opening Stroke

mm

410

Platen Size

mm*mm

670*670

Space btw. Tie Bars

mm*mm

460*460

Daylight max

mm

910

Mold Thickness(min-max)

mm

160-500

Ejection Stroke

mm

130

Ejector Force

KN

41.6

Ejector Pin

unit

4+1

POWER UNIT

System Pressure

Mpa

17.5

Pump Motor

KW

15

Heating Capacity

KW

9.6

No. of Heater Zones

unit

5

GENERAL UNIT

Oil Tank Capacity

L

230

Machine Dimensions

m*m*m

4.85*1.42*1.94

Machine Weight

KG

4300

Borche Servo Injection Molding Machine Models. A, B and C screws are option.

BS-150 150Ton Borche Plastic Injection Molding Machine Features

Injection Unit

Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail

Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication

Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √

Electric and Control Part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage

High quality plastic auto parts and moulds
