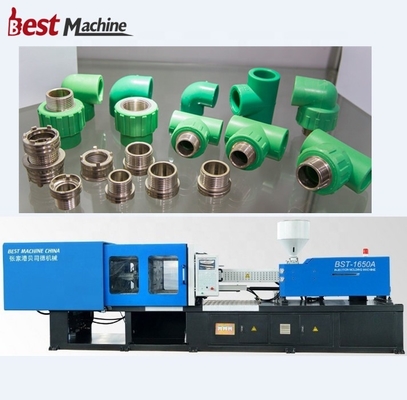

BST-3400A high capacity PPR pipe fitting products plastic injection molding making machine price
- Imported advanced computer systems, Chinese, English, Russian, Spanish, Turkish interface.
- Can save 10 sets of mold parameters.
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
- Suitable for producing different types of precision small parts.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
- Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)
- Service:We provide free advanced training and maintenance in china factory,and 24 hours on-line or phone service if you request we also can provide installation and training abroad,until customer's satisfaction
- Delivery time:35days after advance payment
BST-3400A PPR pipe fittings injection molding machine
MODEL | BST-3400A | ||||||
INJECTION UNIT | A | B | |||||
Screw diameter | mm | 58 | 60 | ||||
Shot size(theoretical) | Cm³ | 858 | 918 | ||||
Shot weight | g | 772 | 826 | ||||
Injection pressure | Mpa | 180 | 168 | ||||
Injection rate | g/s | 254 | 272 | ||||
Screw L/D ratio | L/D | 22.2 | 21.5 | ||||
Screw speed | r.p.m | 0-180 | |||||
Nozzle Diameter | Srmm | 20 | |||||
CLAMPING | |||||||
Clamp tonnage | KN | 3400 | |||||
Toggle stroke | mm | 580 | |||||
Mould Thickness | mm | 270-650 | |||||
Space between tie-bars | mm | 640X640 | |||||
Ejector stroke | mm | 160 | |||||
Ejector tonnage | KN | 80 | |||||
Ejector number | Piece | 13 | |||||
Hole Diameter | mm | 160 | |||||
OTHERS | |||||||
Heat power | KW | 17.5 | |||||
Max. pump pressure | MPa | 16 | |||||
Pump motor power | KW | 30 | |||||
Valve Size | mm | 25 | |||||
Machine dimension | m | 6.7X2.0X1.9 | |||||
Machine weight | t | 10.8 | |||||
Oil tank capacity | L | 400 |
BST-3400A injection moulding machine
BST-3400A injection moulding machine
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
BST-3400A injection moulding machine
CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.
BST-3400A Injection Molding Machine
HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
BST-1000A Injection Molding Machine
SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In this way, the control of injection molding is not only acurate but also fast, and the repeatabillity of the products high as well.
We have a professional and experience QC team, make sure good quality of every component of machine.
All of machines are assembly by our 10 years experienced workers.
Each injection molding machine with automatically working test at least 72 hours before shipment.
Each machine with one year free spare part.
We take care of our machine packing and loading.
Injection machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.
We should take photos of loading, and send to you for reference.
